Duotone2027NOUVEAU

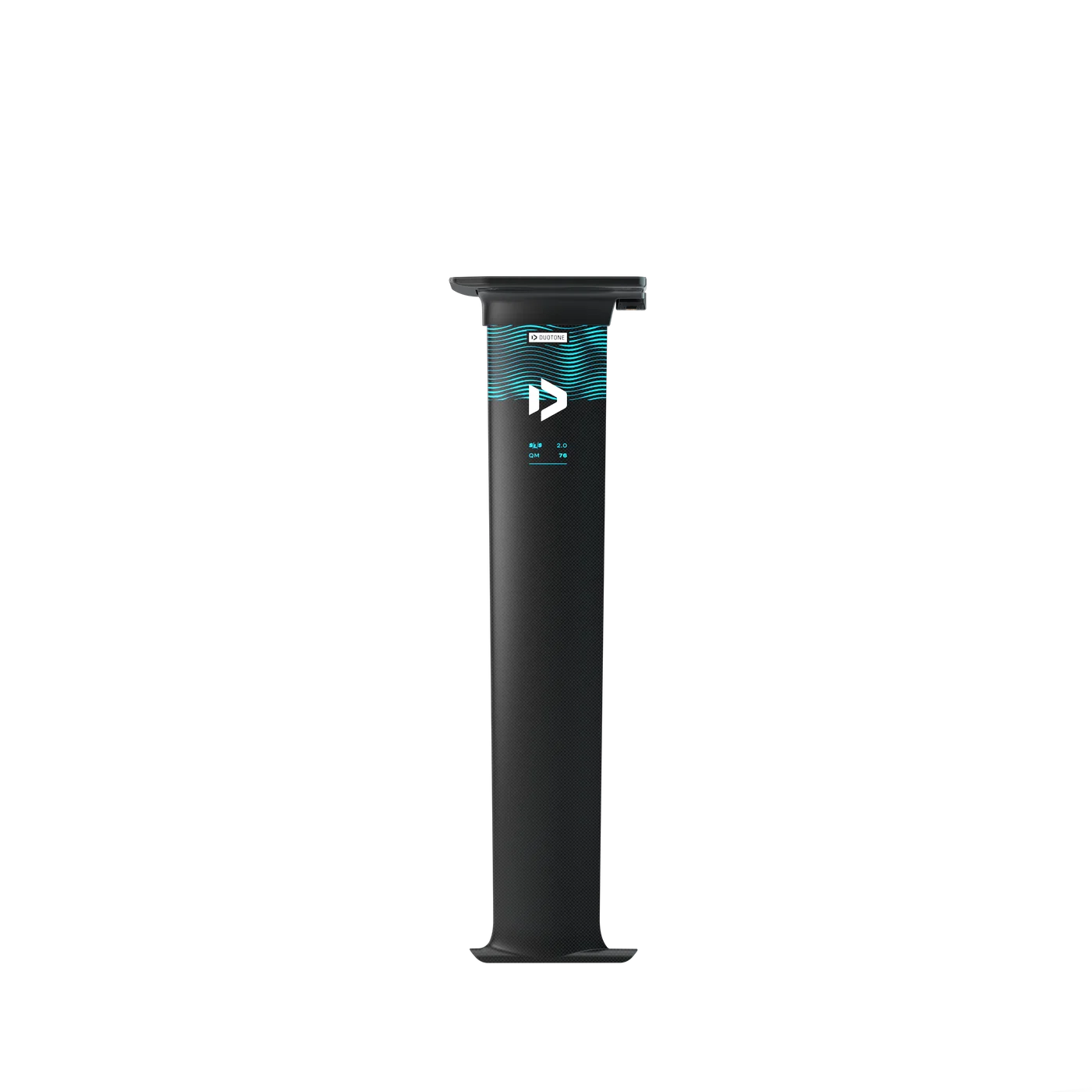

Mast SLS 2.0 QM

CARBON MAST QUICKMOUNT

À partir de10 860 MADSur commande

ColorisRandom

Taille

Commandé chez la marque, compter 2 à 4 semaines.

Référence: 42270-3825
Construction: SLS

Description

Texte du fabricant, en anglais

Sharing the same tapered mast design and low-drag profile as the one-piece SLS 2.0, the Quickmount version delivers efficient glide, smooth acceleration, and reliable stiffness across all foiling disciplines. The refined profile, inspired by the D/LAB range, ensures a balanced mix of performance and control. — Instead of a one-piece construction, the Quickmount features a low-drag Aluminium base plate, fully compatible with previous Duotone Quickmount systems. As a well-proven system in the Duotone foil range, it offers trusted performance and reliability. This allows you to keep your base plate fixed in your ideal position on the board, while mounting or dismounting the mast quickly via a single screw mechanism. — The result is a highly versatile and user-friendly setup that doesn’t compromise performance - ideal for frequent travel, quick gear changes, or riders looking for maximum convenience.

Points forts

Texte du fabricant, en anglais

Balanced Performance
Positioned between the Aluminium and D/LAB mast ranges, the SLS 2.0 QM delivers an ideal balance of efficiency, stiffness, control, and accessibility.
D/LAB-Inspired Performance
Borrowing its refined profile concept from the D/LAB range, the SLS 2.0 QM delivers smoother acceleration and a more refined ride feel.
Direct Board Connection
The Carbon mast construction delivers direct feedback, efficient power transfer, and a connected riding feel.
Maximum Compatibility
Fully compatible with existing Duotone Quickmount base plates while integrating seamlessly into the current Duotone foil ecosystem.
Reduced Drag Efficiency
The new tapered mast design reduces wetted surface area and drag, improving glide, acceleration, and overall efficiency.

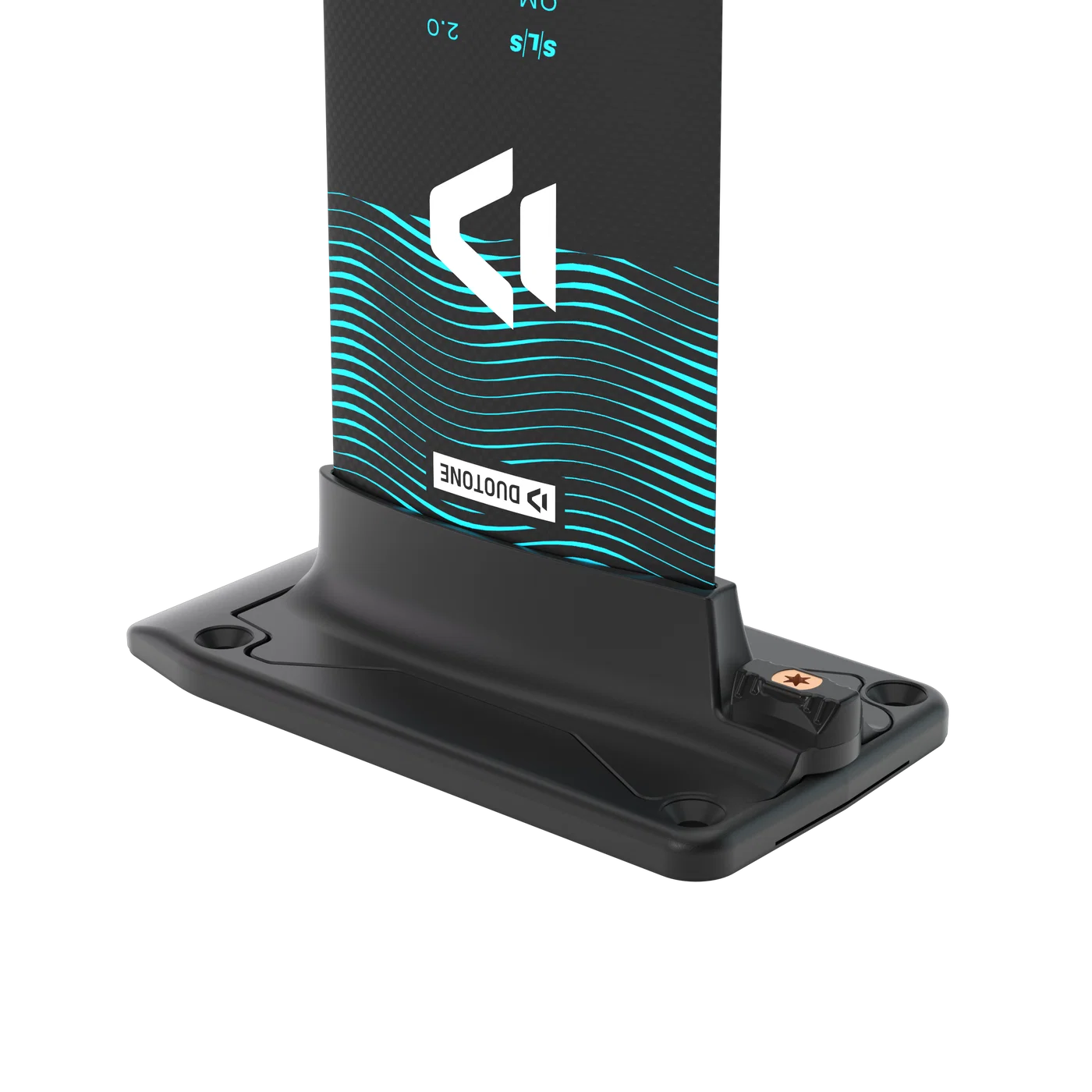

Tool-Free Setup
The Quickmount system allows installation and removal of the mast within seconds using a single screw without the need of any tools.

Tailles et caractéristiques

Longueur (cm)	Corde (mm)	Thickness (thinnest point (mm))	Poids (kg, tolérance ± 5 %)	Vis 3BS	4ᵉ vis 3BS+ (non fournie, livrée avec le tail correspondant)	Couple de serrage conseillé
76	120 tapers to 135 close to plate	18 tapers to 20 close to plate	TBA	3 x M8 x 50, TX 45 / 15Nm	1 x M6 x 32, TX 30 / 10Nm	15Nm M8 / 10Nm M6
84	120 tapers to 135 close to plate	18 tapers to 20 close to plate	TBA	3 x M8 x 50, TX 45 / 15Nm	1 x M6 x 32, TX 30 / 10Nm	15Nm M8 / 10Nm M6
